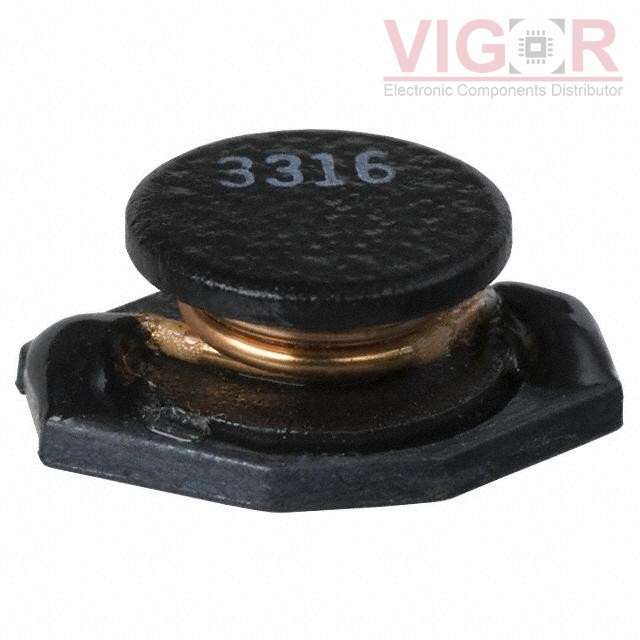

PM3316-221M-RC

Image is for reference,
please contact us to get the real picture

Part No :: PM3316-221M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220UH 700MA 780MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: PM3316-221M-RC PDF

Availability: 542 pieces

Unit Price: ~~$1.16000~~

Current price of PM3316-221M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3316-221M-RC Specifications

Type	Description
Series:	PM3316
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 µH
Tolerance:	±20%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	800mA
Shielding:	Unshielded
DC Resistance (DCR):	780mOhm
Q @ Freq:	33 @ 50kHz
Frequency - Self Resonant:	5MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):	0.209" (5.30mm)
