78477022

78477022

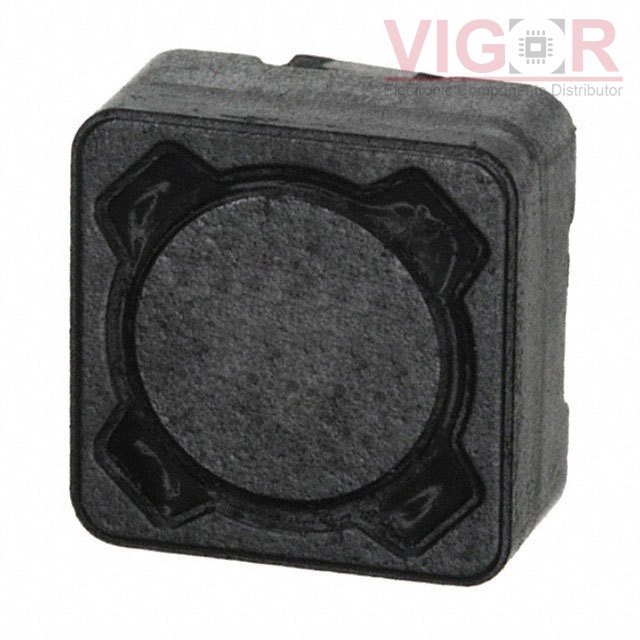

Image is for reference,
please contact us to get the real picture

Part No :

78477022

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 2.2UH 7A 14.5 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
78477022 PDF
Availability
0 pieces
Unit Price
$1.84800

Current price of 78477022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

78477022 Specifications
Type Description
Series:WE-PDA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Nickel Zinc Ferrite (NiZn)
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):7 A
Current - Saturation (Isat):15A
Shielding:Shielded
DC Resistance (DCR):14.5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:85.6MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:1280
Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):0.327" (8.30mm)
