IMC0805ER1R2J01

IMC0805ER1R2J01

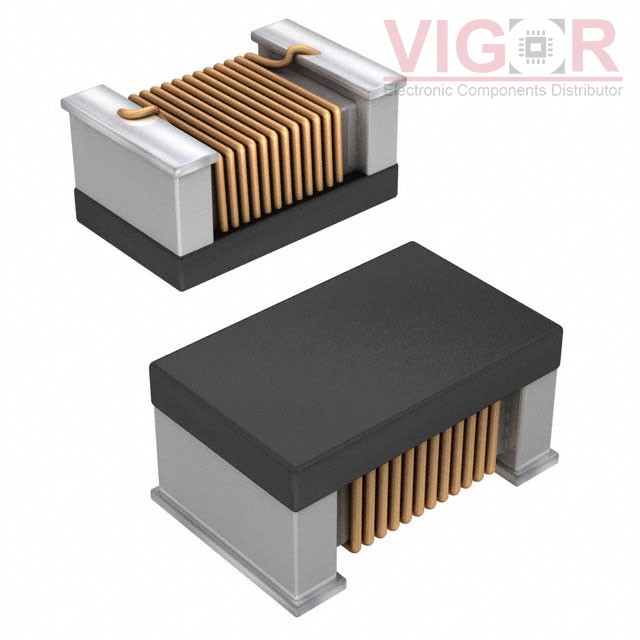

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ER1R2J01

Manufacturer
Vishay / Dale
Description
FIXED IND 1.2UH 150MA 2.6 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
IMC0805ER1R2J01 PDF
Availability
0 pieces
Unit Price
$0.12240

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IMC0805ER1R2J01 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

IMC0805ER1R2J01 Specifications
Type Description
Series:IMC-0805-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1.2 µH
Tolerance:±5%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.6Ohm Max
Q @ Freq:15 @ 7.96MHz
Frequency - Self Resonant:200MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.055" (1.40mm)
