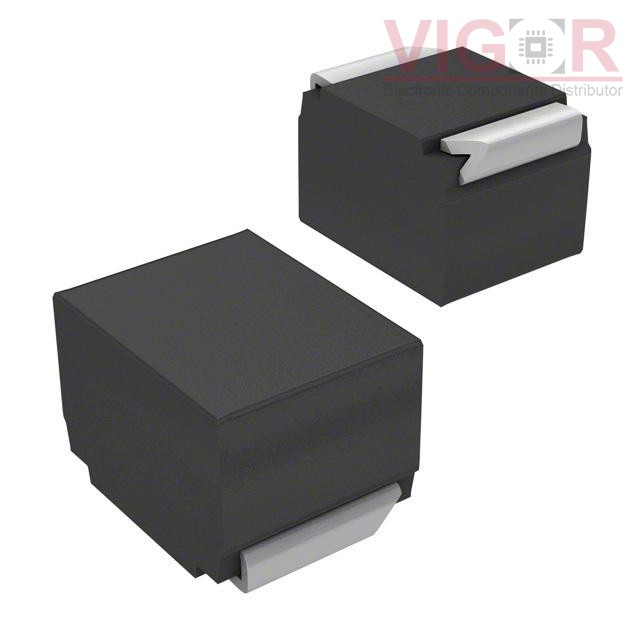

B82422A3560J108

B82422A3560J108

Image is for reference,
please contact us to get the real picture

Part No :

B82422A3560J108

Manufacturer
TDK EPCOS
Description
FIXED IND 56NH 500MA 200 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B82422A3560J108 PDF
Availability
0 pieces
Unit Price
$0.24552

Current price of B82422A3560J108 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422A3560J108 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):500 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):200mOhm Max
Q @ Freq:26 @ 50MHz
Frequency - Self Resonant:1.2GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:10 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

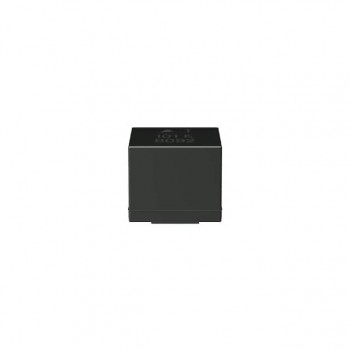

HOT B82442T1335K000

B82442T1335K000

FIXED IND 3.3MH 85MA 32.8 OHM

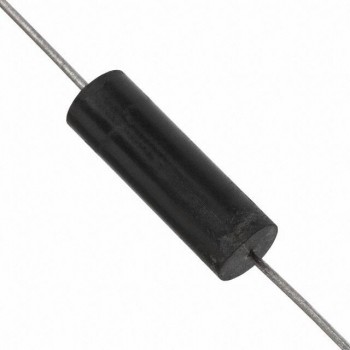

HOT 2474R-25K

2474R-25K

FIXED IND 100UH 1.3A 208 MOHM TH

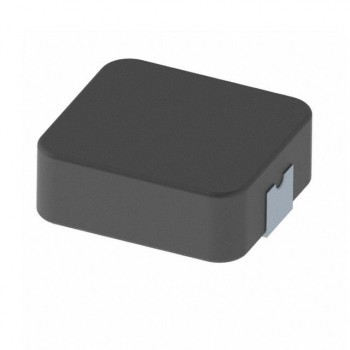

HOT HCM1A1104-150-R
