SDR0603-121KL

SDR0603-121KL

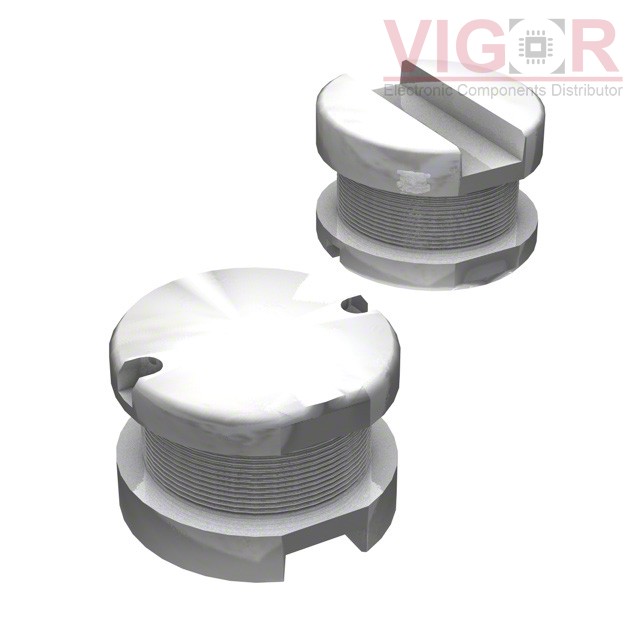

Image is for reference,
please contact us to get the real picture

Part No :

SDR0603-121KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 120UH 360MA 1.1OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SDR0603-121KL PDF
Availability
0 pieces
Unit Price
$0.24310

Current price of SDR0603-121KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0603-121KL Specifications
Type Description
Series:SDR0603
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:120 µH
Tolerance:±10%
Current Rating (Amps):360 mA
Current - Saturation (Isat):600mA
Shielding:Unshielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:27 @ 796kHz
Frequency - Self Resonant:8MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.154" (3.90mm)
