LQH43NN561J03L

LQH43NN561J03L

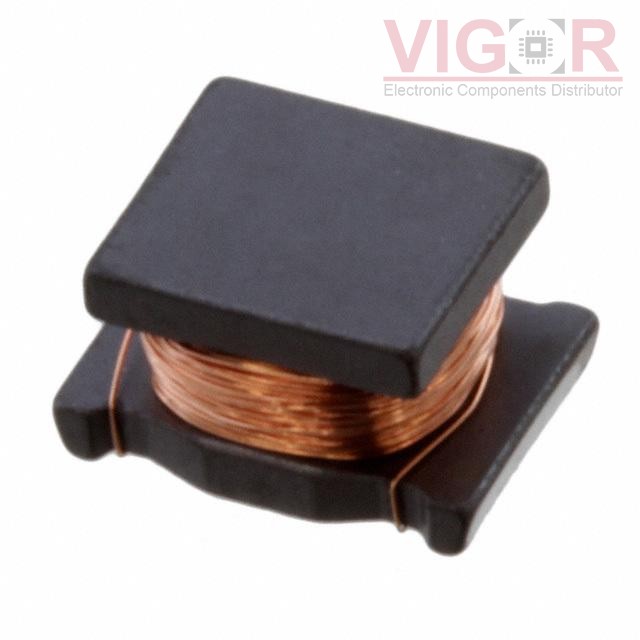

Image is for reference,
please contact us to get the real picture

Part No :

LQH43NN561J03L

Manufacturer
TOKO / Murata
Description
FIXED IND 560UH 70MA 14.5 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
LQH43NN561J03L PDF
Availability
1400 pieces
Unit Price
$0.57000

Current price of LQH43NN561J03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH43NN561J03L Specifications
Type Description
Series:LQH43
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±5%
Current Rating (Amps):70 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):14.5Ohm Max
Q @ Freq:40 @ 796kHz
Frequency - Self Resonant:2.7MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812 (4532 Metric)
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.110" (2.80mm)
