IHLP2525AHERR22M01

IHLP2525AHERR22M01

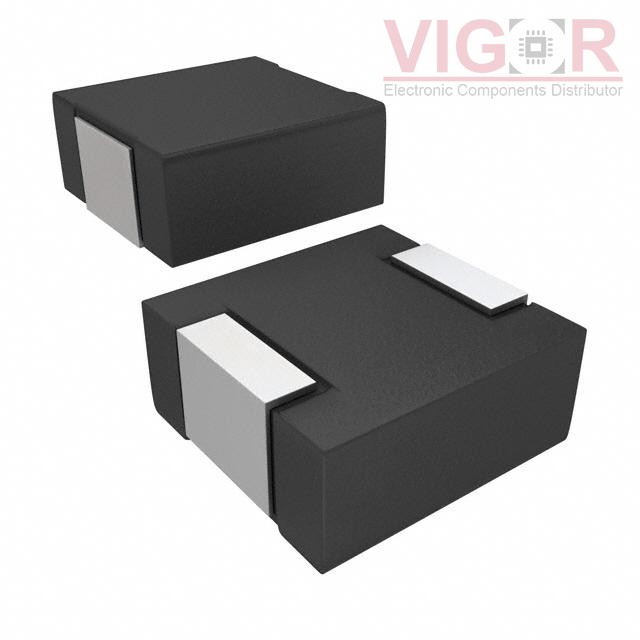

Image is for reference,
please contact us to get the real picture

Part No :

IHLP2525AHERR22M01

Manufacturer
Vishay / Dale
Description
FIXED IND 220NH 14A 5.7 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
IHLP2525AHERR22M01 PDF
Availability
0 pieces
Unit Price
$0.57600

Current price of IHLP2525AHERR22M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP2525AHERR22M01 Specifications
Type Description
Series:IHLP-2525AH-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:220 nH
Tolerance:±20%
Current Rating (Amps):14 A
Current - Saturation (Isat):26A
Shielding:Shielded
DC Resistance (DCR):5.7mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):0.071" (1.80mm)
