7847709220

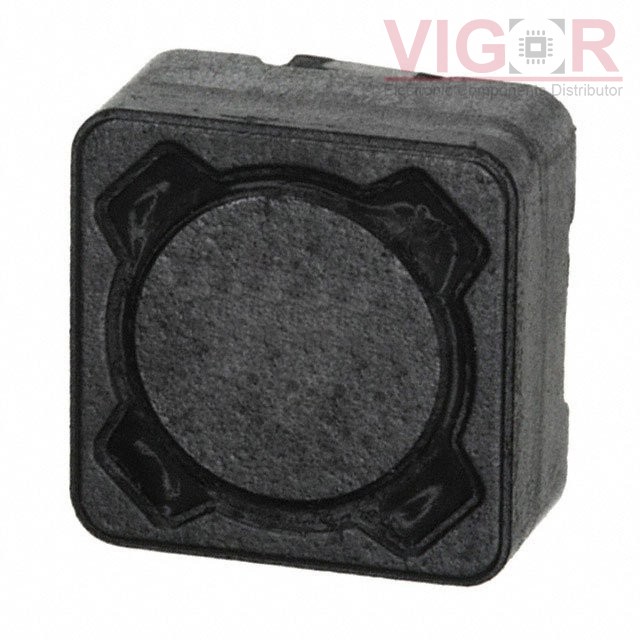

Image is for reference,
please contact us to get the real picture

Part No :: 7847709220

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 4.3A 44 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: 7847709220 PDF

Availability: 145 pieces

Unit Price: ~~$2.73000~~

Current price of 7847709220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7847709220 Specifications

Type	Description
Series:	WE-PDA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Nickel Zinc Ferrite (NiZn)
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	4.3 A
Current - Saturation (Isat):	5A
Shielding:	Shielded
DC Resistance (DCR):	44mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	11MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1210
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.406" (10.30mm)
