SDR0603-271KL

SDR0603-271KL

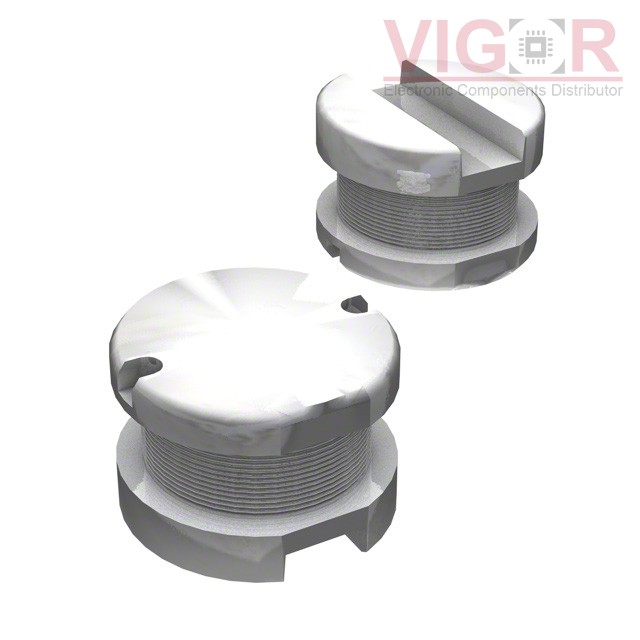

Image is for reference,
please contact us to get the real picture

Part No :

SDR0603-271KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 270UH 240MA 2.4OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
SDR0603-271KL PDF
Availability
0 pieces
Unit Price
$0.57000

Current price of SDR0603-271KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0603-271KL Specifications
Type Description
Series:SDR0603
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:270 µH
Tolerance:±10%
Current Rating (Amps):240 mA
Current - Saturation (Isat):380mA
Shielding:Unshielded
DC Resistance (DCR):2.4Ohm Max
Q @ Freq:26 @ 796kHz
Frequency - Self Resonant:5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.154" (3.90mm)
