NLCV25T-R22M-EFRD

NLCV25T-R22M-EFRD

Image is for reference,
please contact us to get the real picture

Part No :

NLCV25T-R22M-EFRD

Manufacturer
TDK Corporation
Description
FIXED IND 220NH 1.69A 60 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
NLCV25T-R22M-EFRD PDF
Availability
1769 pieces
Unit Price
$0.33000

Current price of NLCV25T-R22M-EFRD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV25T-R22M-EFRD Specifications
Type Description
Series:NLCV-EFD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:220 nH
Tolerance:±20%
Current Rating (Amps):1.69 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):60mOhm Max
Q @ Freq:5 @ 25.2MHz
Frequency - Self Resonant:400MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PA4318.473NLT

PA4318.473NLT

FIXED IND 47UH 860MA 300 MOHM
HOT 1269AS-H-2R2M=P2

1269AS-H-2R2M=P2

FIXED IND 2.2UH 1.9A 156 MOHM

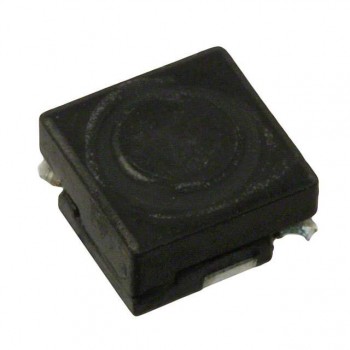

HOT SRR0603-470YL
