SDR1006-222KL

SDR1006-222KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR1006-222KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.2MH 160MA 7.6OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SDR1006-222KL PDF
Availability
924 pieces
Unit Price
$0.88000

Current price of SDR1006-222KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1006-222KL Specifications
Type Description
Series:SDR1006
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 mH
Tolerance:±10%
Current Rating (Amps):160 mA
Current - Saturation (Isat):360mA
Shielding:Unshielded
DC Resistance (DCR):7.6Ohm Max
Q @ Freq:31 @ 252kHz
Frequency - Self Resonant:1.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1812-332H

1812-332H

FIXED IND 3.3UH 501MA 800 MOHM
HOT 7447820010

7447820010

FIXED IND 1NH 470MA 110 MOHM SMD

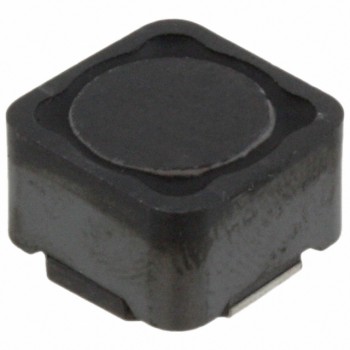

HOT DRA127-681-R
