AMDLA1004S-R22MT

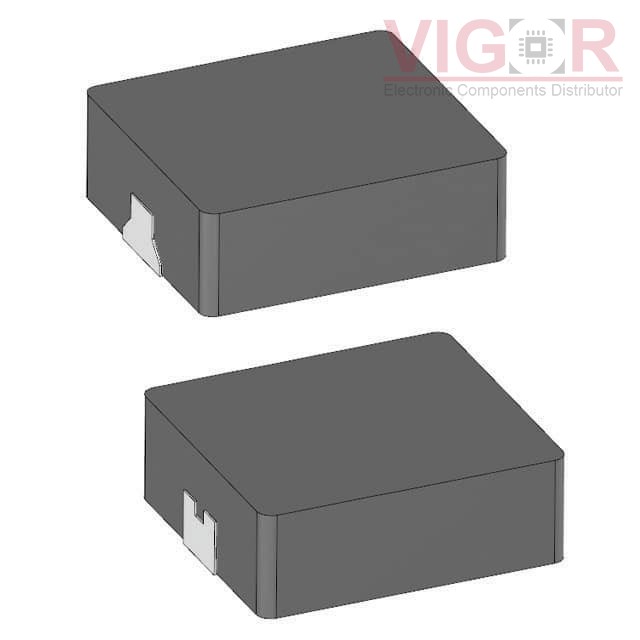

Image is for reference,
please contact us to get the real picture

Part No :: AMDLA1004S-R22MT

Manufacturer: Abracon

Description: IND 0.22UH 36A 0.83MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: AMDLA1004S-R22MT PDF

Availability: 0 pieces

Unit Price: ~~$0.75860~~

Current price of AMDLA1004S-R22MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMDLA1004S-R22MT Specifications

Type	Description
Series:	AMDLA1004S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	36 A
Current - Saturation (Isat):	70A
Shielding:	Shielded
DC Resistance (DCR):	0.83mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
