SRR1005-561K

SRR1005-561K

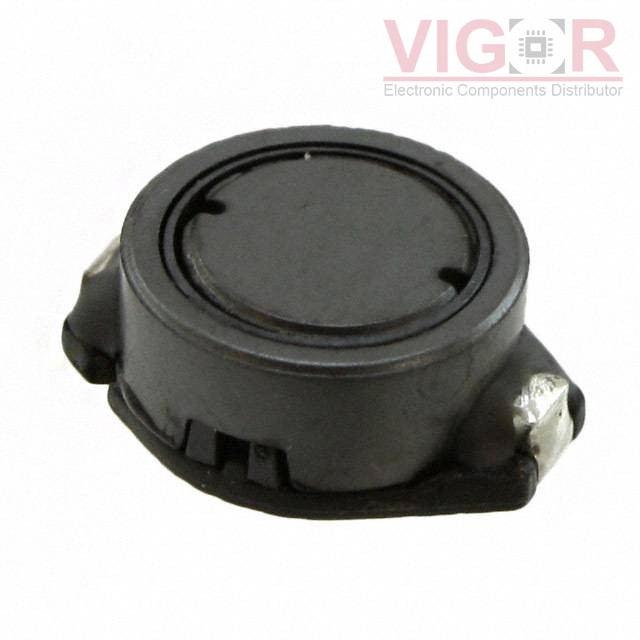

Image is for reference,
please contact us to get the real picture

Part No :

SRR1005-561K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 280MA 1.8OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
SRR1005-561K PDF
Availability
0 pieces
Unit Price
$0.53460

Current price of SRR1005-561K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR1005-561K Specifications
Type Description
Series:SRR1005
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):280 mA
Current - Saturation (Isat):420mA
Shielding:Shielded
DC Resistance (DCR):1.8Ohm Max
Q @ Freq:40 @ 796kHz
Frequency - Self Resonant:2.7MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.205" (5.20mm)
