PA5001.561NLT

PA5001.561NLT

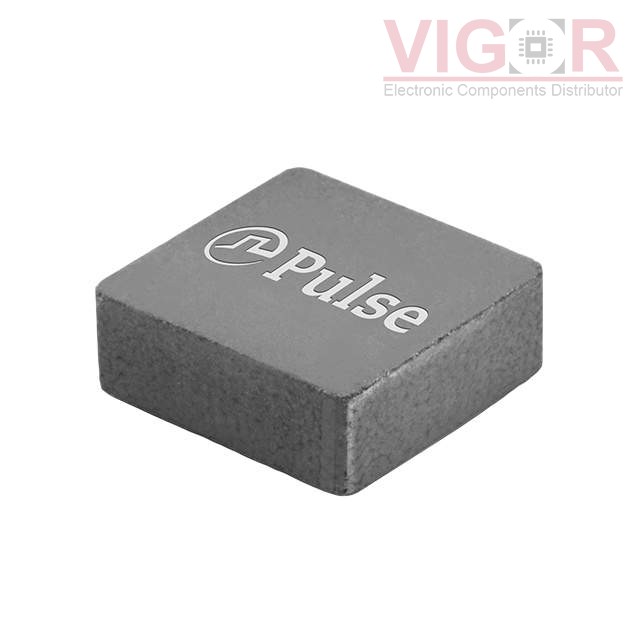

Image is for reference,
please contact us to get the real picture

Part No :

PA5001.561NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 560NH 12A 9.3MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
PA5001.561NLT PDF
Availability
0 pieces
Unit Price
$1.76000

Current price of PA5001.561NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5001.561NLT Specifications
Type Description
Series:PA5001.XXXNLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):12 A
Current - Saturation (Isat):14A
Shielding:Shielded
DC Resistance (DCR):9.3mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMC1210BNR12M

IMC1210BNR12M

FIXED IND 120NH 584MA 220 MOHM

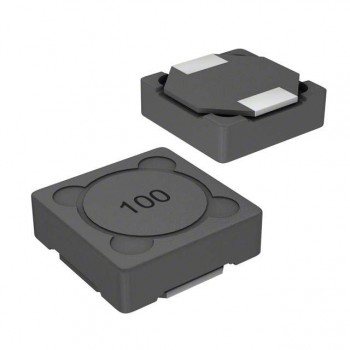

HOT SRR1240-1R5Y

SRR1240-1R5Y

FIXED IND 1.5UH 9.2A 9.5MOHM SMD

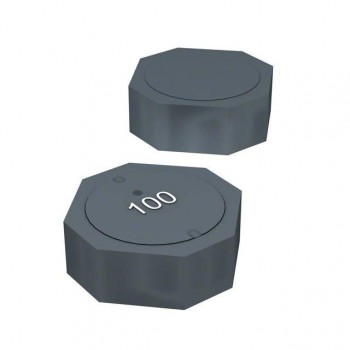

HOT SRU8043-180Y
