PD0120.223NL

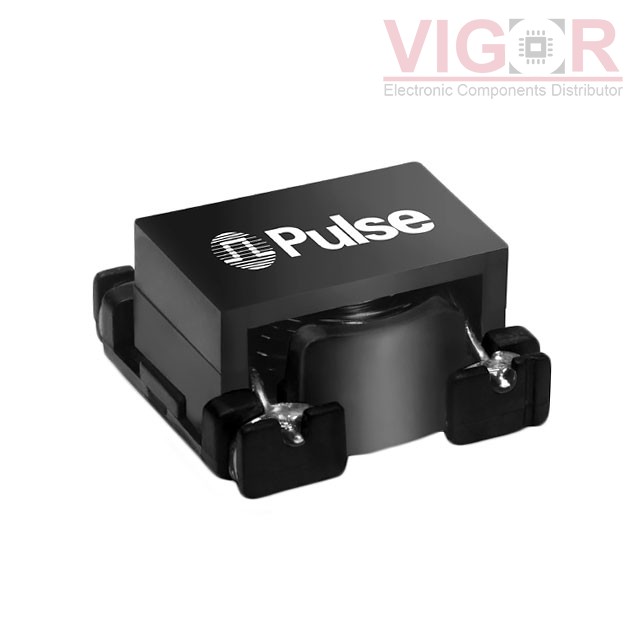

Image is for reference,
please contact us to get the real picture

Part No :: PD0120.223NL

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 23.1UH 5.3A 35.5 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: PD0120.223NL PDF

Availability: 0 pieces

Unit Price: ~~$3.05000~~

Current price of PD0120.223NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PD0120.223NL Specifications

Type	Description
Series:	PD0120NL
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	23.1 µH
Tolerance:	±10%
Current Rating (Amps):	5.3 A
Current - Saturation (Isat):	6.8A
Shielding:	Unshielded
DC Resistance (DCR):	35.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	-
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.638" L x 0.628" W (16.20mm x 15.95mm)
Height - Seated (Max):	0.323" (8.20mm)
