5022-334F

Image is for reference,
please contact us to get the real picture

Part No :: 5022-334F

Manufacturer: API Delevan

Description: FIXED IND 330UH 173MA 12 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: May 18 - May 22 2024

DataSheet: 5022-334F PDF

Availability: 0 pieces

Unit Price: ~~$6.51358~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 5022-334F is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

5022-334F Specifications

Type	Description
Series:	5022
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	330 µH
Tolerance:	±1%
Current Rating (Amps):	173 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	12Ohm Max
Q @ Freq:	65 @ 790kHz
Frequency - Self Resonant:	5.1MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AMDLA1004Q-R68MT

FIXED IND 680NH 23A 2.2 MOHM SMD

HOT

MGV05024R7M-12

FIXED IND 4.7UH 2.8A 116.6 MOHM

HOT

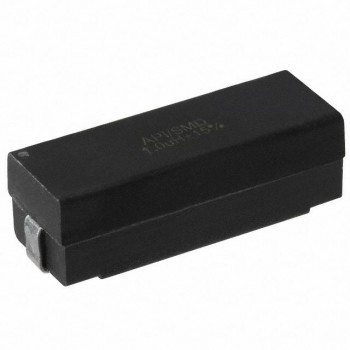

8532R-21L
