LQW21HNR56J00L

LQW21HNR56J00L

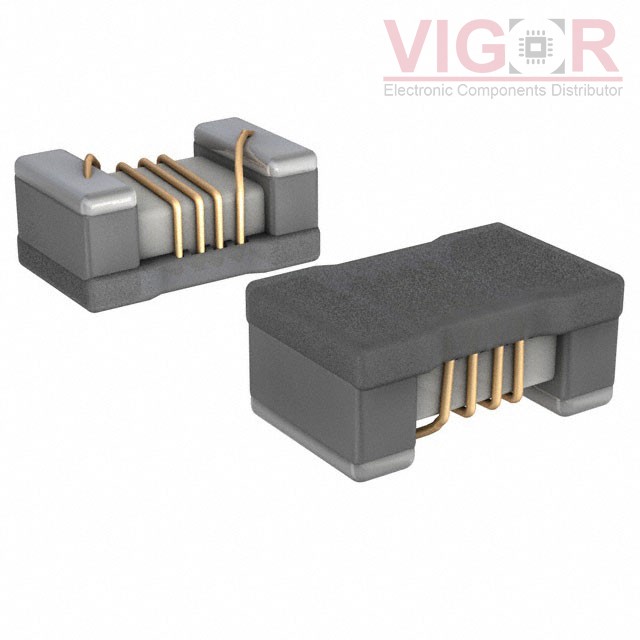

Image is for reference,
please contact us to get the real picture

Part No :

LQW21HNR56J00L

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 150MA 1.43 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
LQW21HNR56J00L PDF
Availability
2308 pieces
Unit Price
$0.44000

Current price of LQW21HNR56J00L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW21HNR56J00L Specifications
Type Description
Series:LQW21
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.43Ohm Max
Q @ Freq:30 @ 100MHz
Frequency - Self Resonant:580MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max):0.039" (1.00mm)
