CM453232-561KL

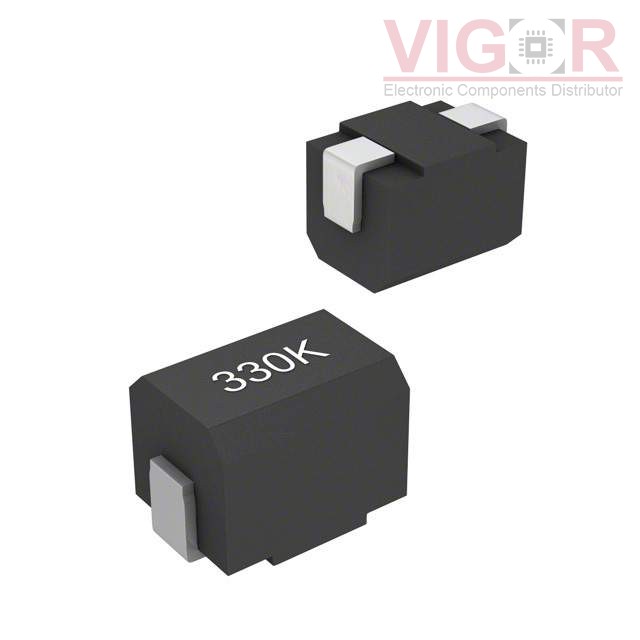

Image is for reference,
please contact us to get the real picture

Part No :: CM453232-561KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 560UH 50MA 30 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CM453232-561KL PDF

Availability: 0 pieces

Unit Price: ~~$0.38000~~

Current price of CM453232-561KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM453232-561KL Specifications

Type	Description
Series:	CM45
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±10%
Current Rating (Amps):	50 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	30Ohm Max
Q @ Freq:	30 @ 796kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)
