ISC1812ES561J

ISC1812ES561J

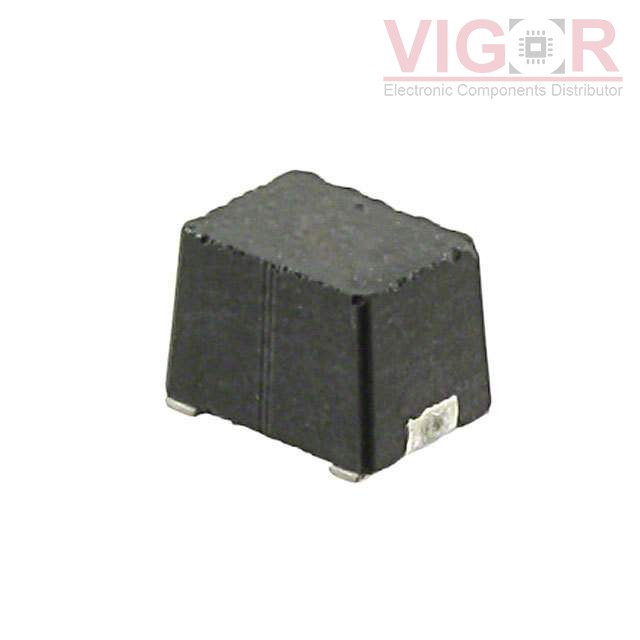

Image is for reference,
please contact us to get the real picture

Part No :

ISC1812ES561J

Manufacturer
Vishay / Dale
Description
FIXED IND 560UH 82MA 10.5 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ISC1812ES561J PDF
Availability
0 pieces
Unit Price
$1.00750

Current price of ISC1812ES561J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISC1812ES561J Specifications
Type Description
Series:ISC-1812
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±5%
Current Rating (Amps):82 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):10.5Ohm Max
Q @ Freq:30 @ 796kHz
Frequency - Self Resonant:2.8MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PA5005.222NLT

PA5005.222NLT

FIXED IND 2.2UH 13A 8.5MOHM SMD
HOT IMC1812ES1R8K

IMC1812ES1R8K

FIXED IND 1.8UH 390MA 650 MOHM

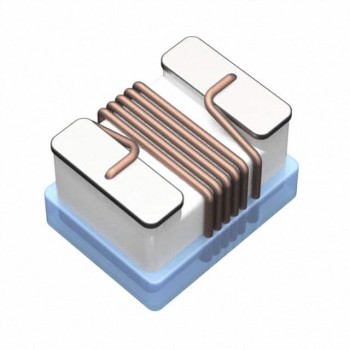

HOT 0805CS-470EKTS
