PQ2614BHA-6R8K

PQ2614BHA-6R8K

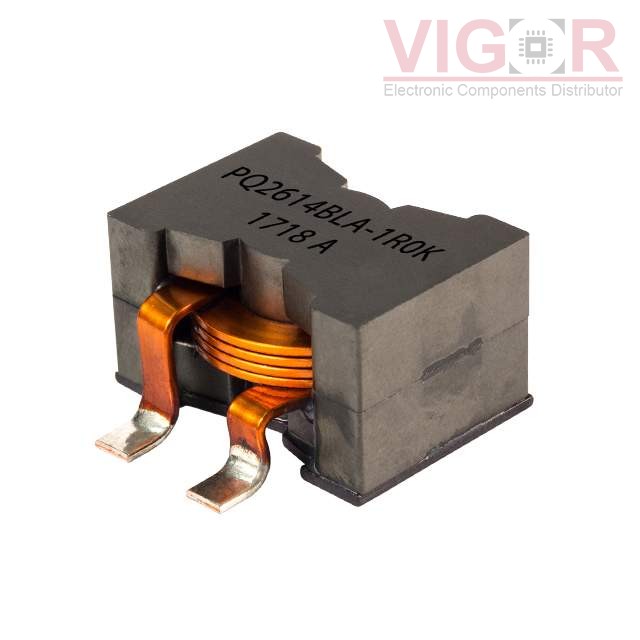

Image is for reference,
please contact us to get the real picture

Part No :

PQ2614BHA-6R8K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 6.8UH 30A 1.9 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
PQ2614BHA-6R8K PDF
Availability
546 pieces
Unit Price
$3.69000

Current price of PQ2614BHA-6R8K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ2614BHA-6R8K Specifications
Type Description
Series:PQ2614BHA
Package:Tray
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:6.8 µH
Tolerance:±10%
Current Rating (Amps):30 A
Current - Saturation (Isat):34.5A
Shielding:Shielded
DC Resistance (DCR):1.9mOhm Max
Q @ Freq:-
Frequency - Self Resonant:20MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:1.098" L x 0.780" W (27.90mm x 19.80mm)
Height - Seated (Max):0.630" (16.00mm)
