SPM5020T-1R0M-LR

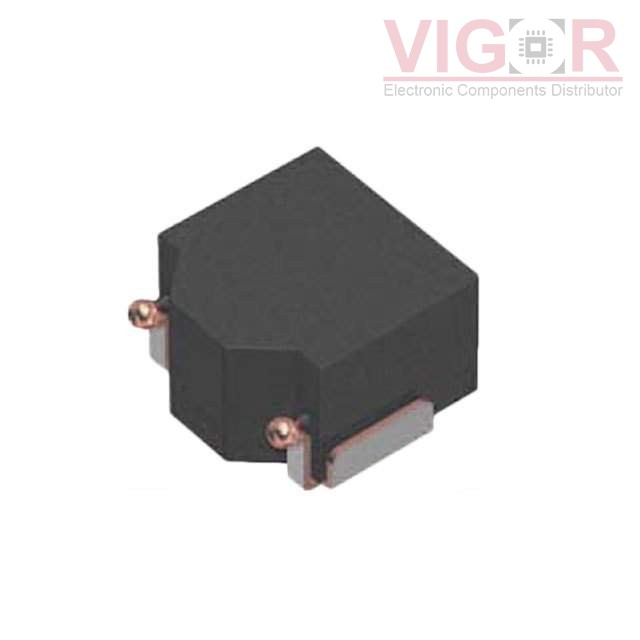

Image is for reference,
please contact us to get the real picture

Part No :: SPM5020T-1R0M-LR

Manufacturer: TDK Corporation

Description: FIXED IND 1UH 8.6A 17.2 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: SPM5020T-1R0M-LR PDF

Availability: 2487 pieces

Unit Price: ~~$1.65000~~

Current price of SPM5020T-1R0M-LR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SPM5020T-1R0M-LR Specifications

Type	Description
Series:	SPM-LR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	8.6 A
Current - Saturation (Isat):	9.5A
Shielding:	Shielded
DC Resistance (DCR):	17.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max):	0.079" (2.00mm)
