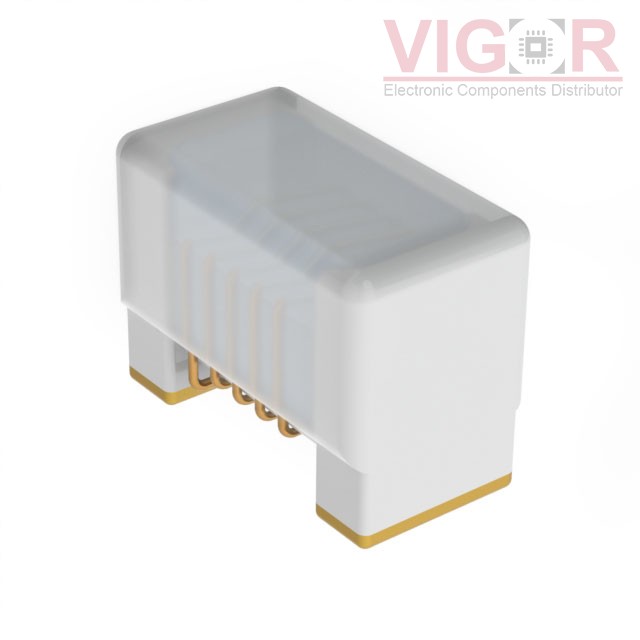

CW105550A-1N5D

Image is for reference,
please contact us to get the real picture

Part No :: CW105550A-1N5D

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 1.5NH 1.04A 70MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: CW105550A-1N5D PDF

Availability: 935 pieces

Unit Price: ~~$0.25000~~

Current price of CW105550A-1N5D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW105550A-1N5D Specifications

Type	Description
Series:	CW105550A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ceramic
Inductance:	1.5 nH
Tolerance:	±0.3nH
Current Rating (Amps):	1.04 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	16 @ 250MHz
Frequency - Self Resonant:	6GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AISC-0603F-180J-T

FIXED IND 18UH 80MA 10.4 OHM SMD

HOT

CDR63BNP-560LC

FIXED IND 56UH 460MA 720 MOHM

HOT

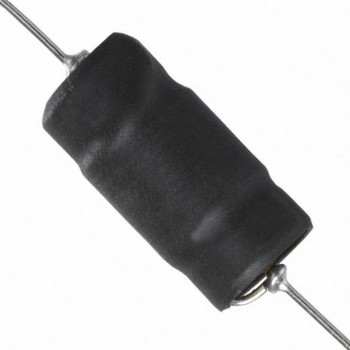

5900-183-RC
