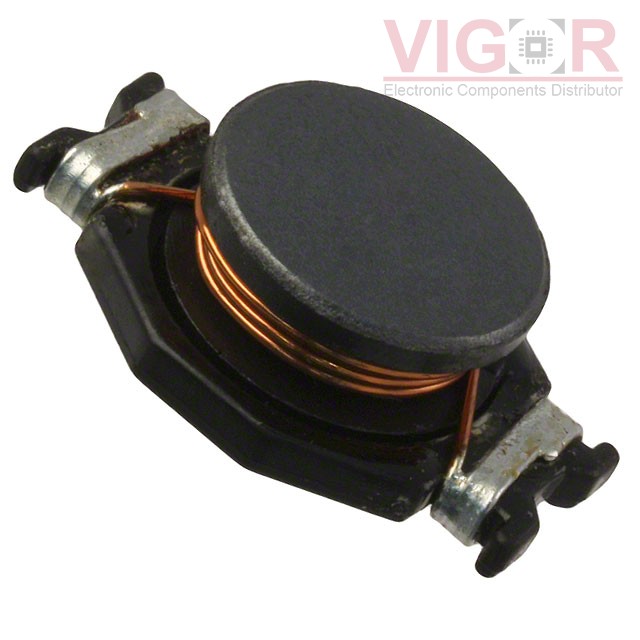

SDR2207-220YL

SDR2207-220YL

Image is for reference,
please contact us to get the real picture

Part No :

SDR2207-220YL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 4A 39.4 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SDR2207-220YL PDF
Availability
0 pieces
Unit Price
$1.35000

Current price of SDR2207-220YL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR2207-220YL Specifications
Type Description
Series:SDR2207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):4 A
Current - Saturation (Isat):6.5A
Shielding:Unshielded
DC Resistance (DCR):39.4mOhm Max
Q @ Freq:27 @ 3MHz
Frequency - Self Resonant:14MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max):0.307" (7.80mm)
