ELJ-NCR56JF

ELJ-NCR56JF

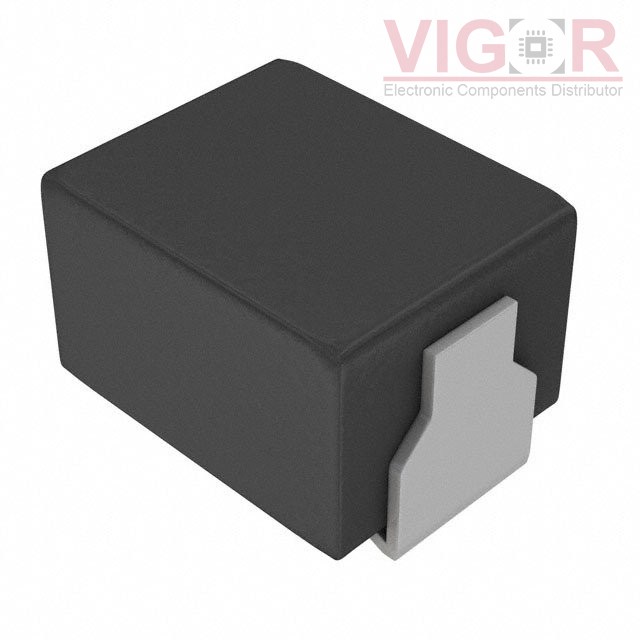

Image is for reference,
please contact us to get the real picture

Part No :

ELJ-NCR56JF

Manufacturer
Panasonic
Description
FIXED IND 560NH 120MA 1.7 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
ELJ-NCR56JF PDF
Availability
338 pieces
Unit Price
$0.24000

Current price of ELJ-NCR56JF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-NCR56JF Specifications
Type Description
Series:NC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):120 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.7Ohm Max
Q @ Freq:10 @ 25.2MHz
Frequency - Self Resonant:145MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.071" (1.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

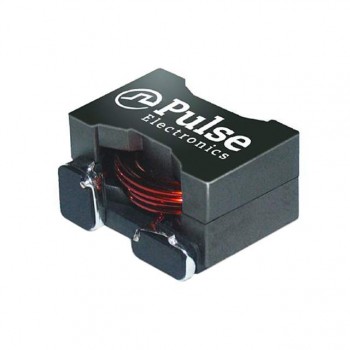

HOT PA2729.443NL

PA2729.443NL

FIXED IND 44UH 6.2A 21.5 MOHM

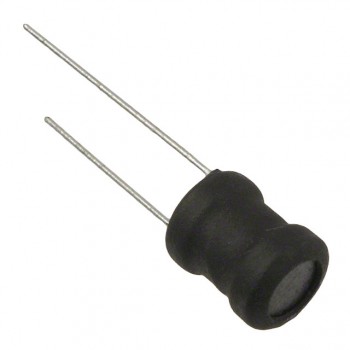

HOT RLB0914-180KL

RLB0914-180KL

FIXED IND 18UH 2.3A 65 MOHM TH

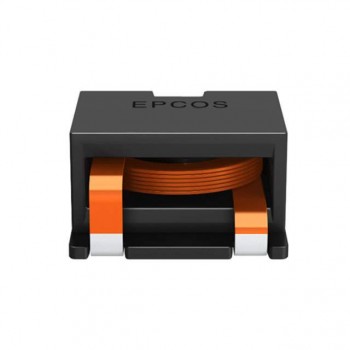

HOT B82559A3152A016
