NLV25T-820J-PFD

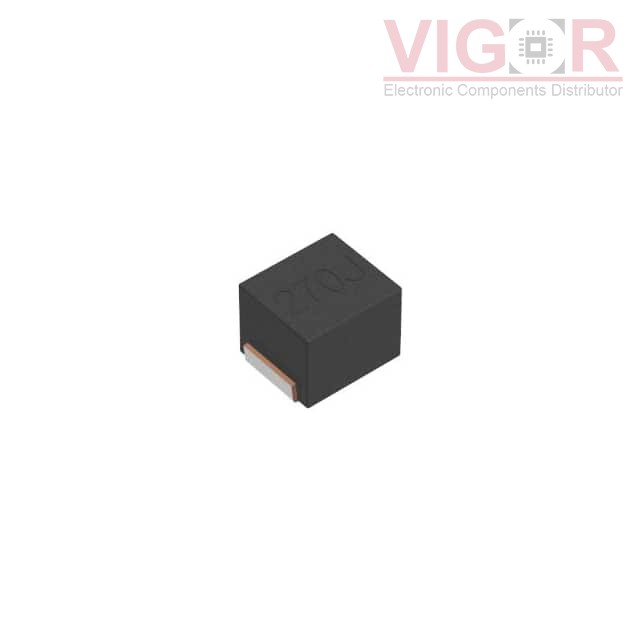

Image is for reference,
please contact us to get the real picture

Part No :: NLV25T-820J-PFD

Manufacturer: TDK Corporation

Description: FIXED IND 82UH 66MA 19 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: NLV25T-820J-PFD PDF

Availability: 0 pieces

Unit Price: ~~$0.12811~~

Current price of NLV25T-820J-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-820J-PFD Specifications

Type	Description
Series:	NLV-PFD
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±5%
Current Rating (Amps):	66 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	19Ohm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.075" (1.90mm)
