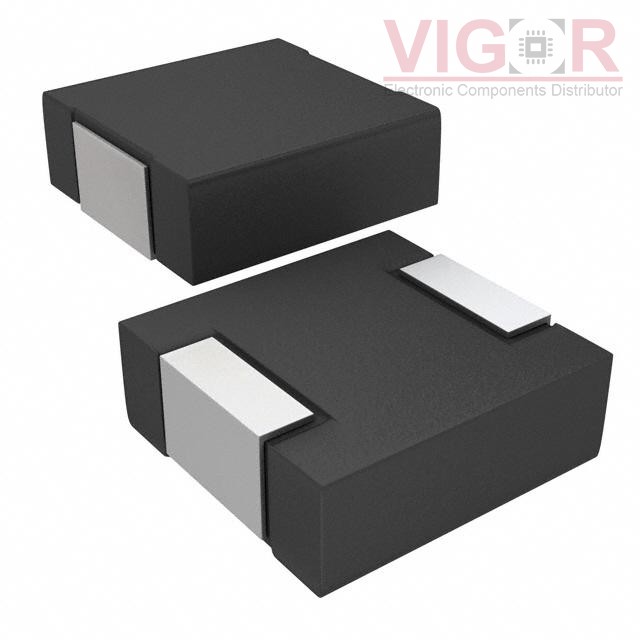

IHLP2020CZER5R6M01

IHLP2020CZER5R6M01

Image is for reference,
please contact us to get the real picture

Part No :

IHLP2020CZER5R6M01

Manufacturer
Vishay / Dale
Description
FIXED IND 5.6UH 3A 108 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
IHLP2020CZER5R6M01 PDF
Availability
0 pieces
Unit Price
$1.22000

Current price of IHLP2020CZER5R6M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP2020CZER5R6M01 Specifications
Type Description
Series:IHLP-2020CZ-01
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:5.6 µH
Tolerance:±20%
Current Rating (Amps):3 A
Current - Saturation (Isat):4.1A
Shielding:Shielded
DC Resistance (DCR):108mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max):0.118" (3.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MDMK3030T4R7MMV

MDMK3030T4R7MMV

FIXED IND 4.7UH 1.55A 263 MOHM

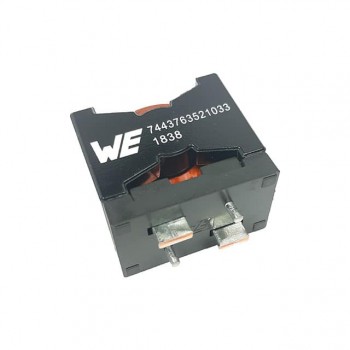

HOT 7443763521033

7443763521033

FIXED IND 3.3UH 75A 0.4 MOHM TH

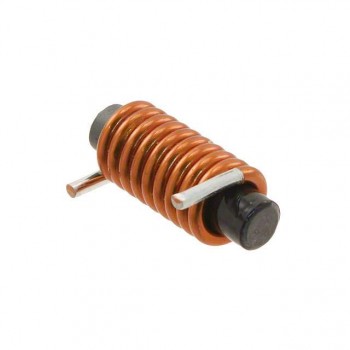

HOT 744710215
