PM3316-151M-RC

PM3316-151M-RC

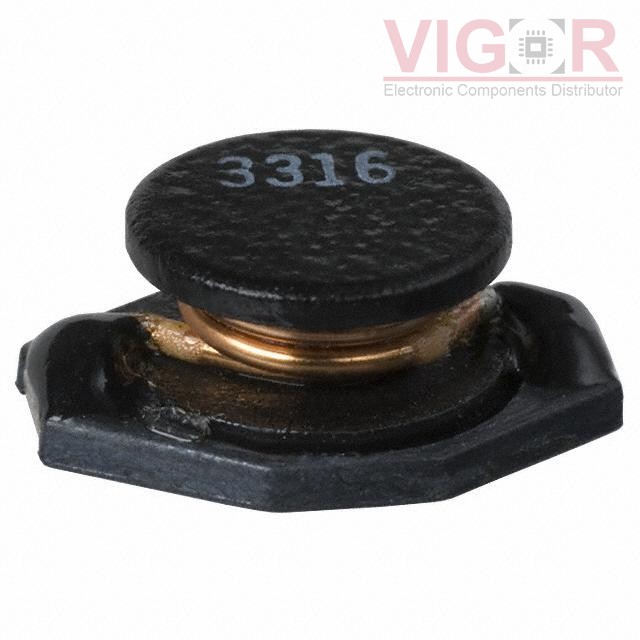

Image is for reference,
please contact us to get the real picture

Part No :

PM3316-151M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 150UH 800MA 590MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
PM3316-151M-RC PDF
Availability
17472 pieces
Unit Price
$1.16000

Current price of PM3316-151M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3316-151M-RC Specifications
Type Description
Series:PM3316
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:150 µH
Tolerance:±20%
Current Rating (Amps):800 mA
Current - Saturation (Isat):1A
Shielding:Unshielded
DC Resistance (DCR):590mOhm
Q @ Freq:30 @ 50kHz
Frequency - Self Resonant:6MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.209" (5.30mm)
