PA5004.561NLT

PA5004.561NLT

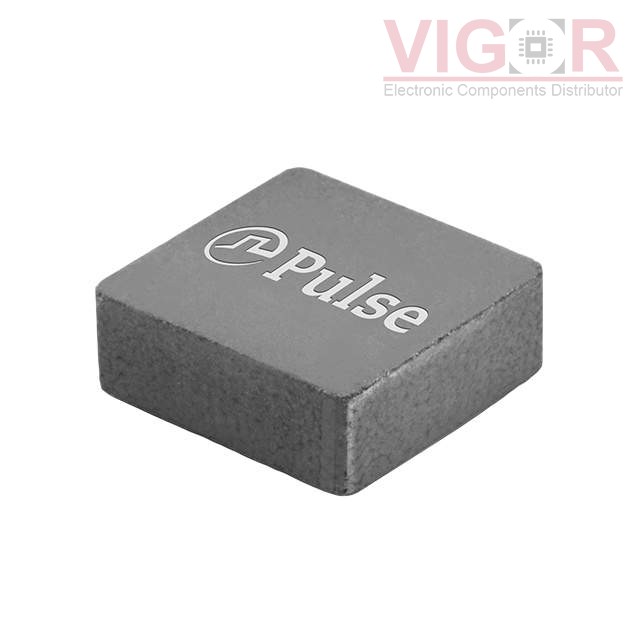

Image is for reference,
please contact us to get the real picture

Part No :

PA5004.561NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 560NH 22A 3.31 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
PA5004.561NLT PDF
Availability
0 pieces
Unit Price
$0.94550

Current price of PA5004.561NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5004.561NLT Specifications
Type Description
Series:PA5004.XXXNLT
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):22 A
Current - Saturation (Isat):29A
Shielding:Shielded
DC Resistance (DCR):3.31mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.268" L x 0.252" W (6.80mm x 6.40mm)
Height - Seated (Max):0.118" (3.00mm)
