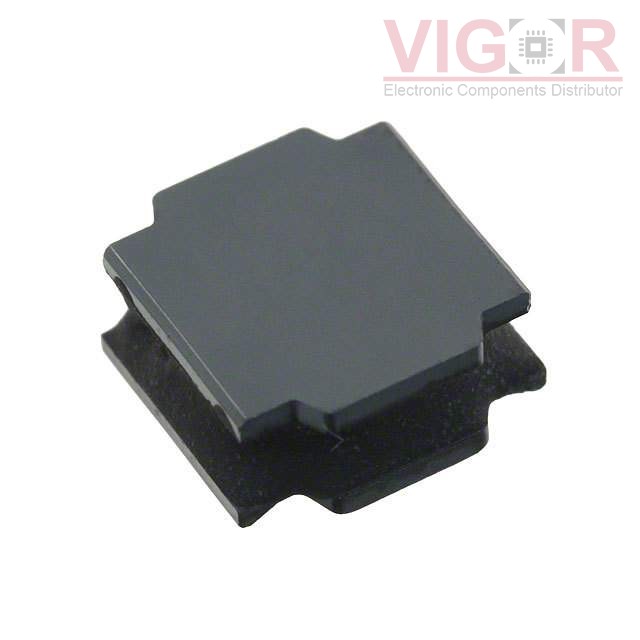

NRS6012T220MMGJ

Image is for reference,
please contact us to get the real picture

Part No :: NRS6012T220MMGJ

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 650MA 558 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: NRS6012T220MMGJ PDF

Availability: 9400 pieces

Unit Price: ~~$0.33000~~

Current price of NRS6012T220MMGJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS6012T220MMGJ Specifications

Type	Description
Series:	NR, S Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	650 mA
Current - Saturation (Isat):	760mA
Shielding:	Shielded
DC Resistance (DCR):	558mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-25°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.047" (1.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AIRD-01-120K

FIXED IND 12UH 9A 11 MOHM TH

HOT

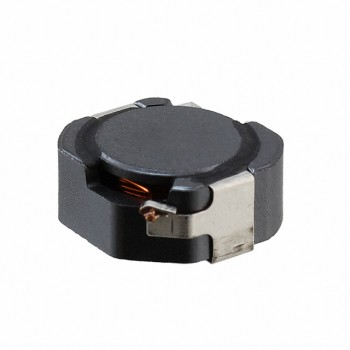

CLF12555T-330M-H

FIXED IND 33UH 2.2A 67 MOHM SMD

HOT

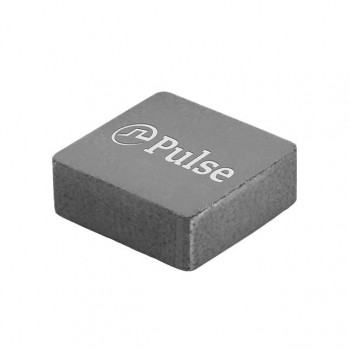

PA5006.331NLT
