0805CS-682EJFS

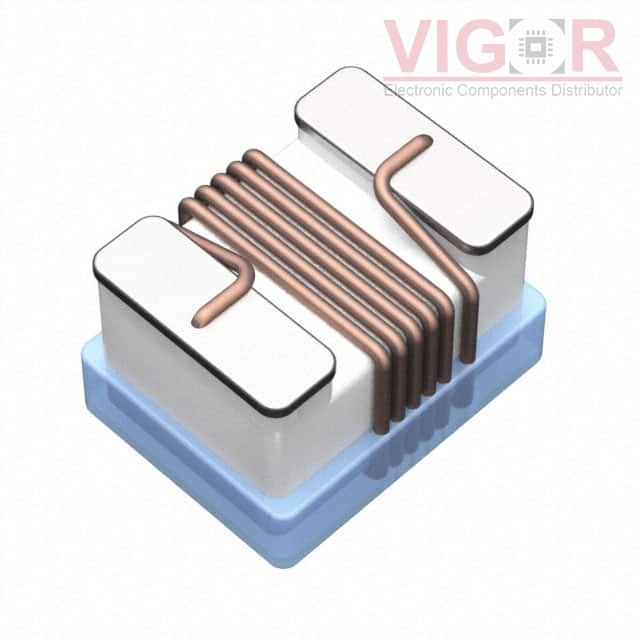

Image is for reference,
please contact us to get the real picture

Part No :: 0805CS-682EJFS

Manufacturer: Delta Electronics

Description: FIXED IND 6.8UH 200MA 2.7OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: 0805CS-682EJFS PDF

Availability: 3980 pieces

Unit Price: ~~$0.32000~~

Current price of 0805CS-682EJFS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0805CS-682EJFS Specifications

Type	Description
Series:	0805CS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	6.8 µH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.7Ohm
Q @ Freq:	15 @ 7.96MHz
Frequency - Self Resonant:	36MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Size / Dimension:	0.090" L x 0.067" W (2.29mm x 1.71mm)
Height - Seated (Max):	0.057" (1.45mm)
