Type | Description |
---|---|
Series: | PF0464NL |
Package: | Tray |
Part Status: | Active |
Type: | - |
Material - Core: | - |
Inductance: | 1.5 µH |
Tolerance: | ±20% |
Current Rating (Amps): | 5.5 A |
Current - Saturation (Isat): | 4.5A |
Shielding: | Shielded |
DC Resistance (DCR): | 12mOhm Max |
Q @ Freq: | - |
Frequency - Self Resonant: | 40MHz |
Ratings: | - |
Operating Temperature: | -40°C ~ 125°C |
Inductance Frequency - Test: | 100 kHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | Nonstandard |
Supplier Device Package: | - |
Size / Dimension: | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
Height - Seated (Max): | 0.118" (3.00mm) |

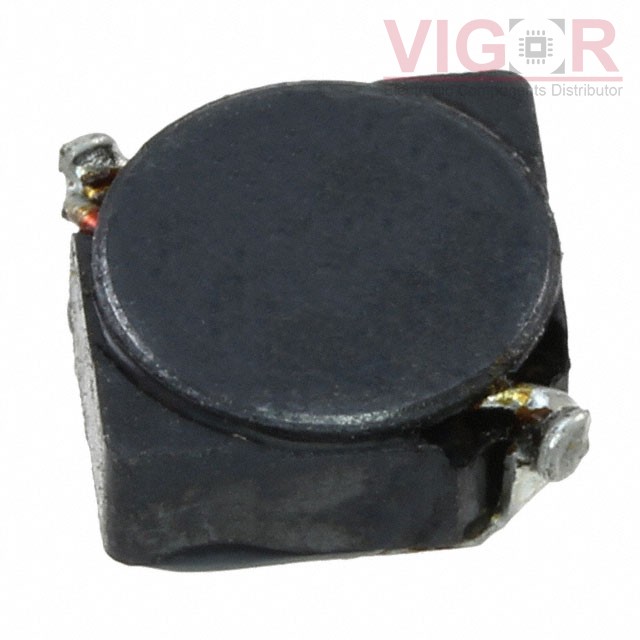

FIXED IND 1.5UH 5.5A 12 MOHM SMD
