5022R-104G

5022R-104G

Image is for reference,
please contact us to get the real picture

Part No :

5022R-104G

Manufacturer
API Delevan
Description
FIXED IND 100UH 275MA 4.5 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
5022R-104G PDF
Availability
0 pieces
Unit Price
$4.81871

Current price of 5022R-104G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022R-104G Specifications
Type Description
Series:5022R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:100 µH
Tolerance:±2%
Current Rating (Amps):275 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):4.5Ohm Max
Q @ Freq:50 @ 2.5MHz
Frequency - Self Resonant:9.5MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.84mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT P1167.333NL

P1167.333NL

FIXED IND 33UH 1.1A 170 MOHM SMD
HOT SRP0312-1R0K

SRP0312-1R0K

FIXED IND 1UH 4.7A 34 MOHM SMD

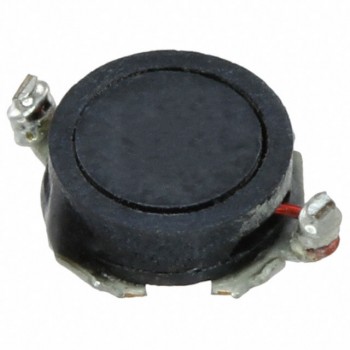

HOT PG0085.332NL
