AISC-0603HP-56NJ-T

AISC-0603HP-56NJ-T

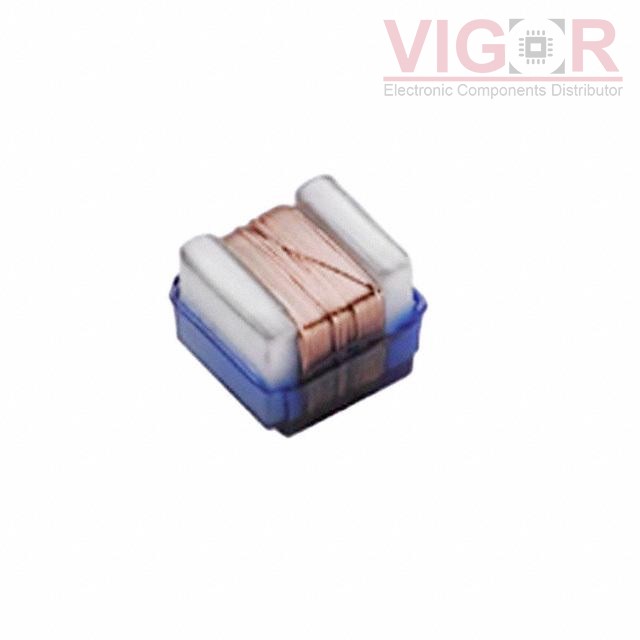

Image is for reference,
please contact us to get the real picture

Part No :

AISC-0603HP-56NJ-T

Manufacturer
Abracon
Description
FIXED IND 56NH 700MA 230 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
AISC-0603HP-56NJ-T PDF
Availability
0 pieces
Unit Price
$0.11261

Current price of AISC-0603HP-56NJ-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AISC-0603HP-56NJ-T Specifications
Type Description
Series:AISC-0603HP
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):230mOhm Max
Q @ Freq:38 @ 200MHz
Frequency - Self Resonant:1.9GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max):0.040" (1.02mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82442H1102K000

B82442H1102K000

FIXED IND 1UH 2.5A 24 MOHM SMD
HOT MCKK1608T1R0MN

MCKK1608T1R0MN

FIXED IND 1UH 1.3A 123 MOHM SMD

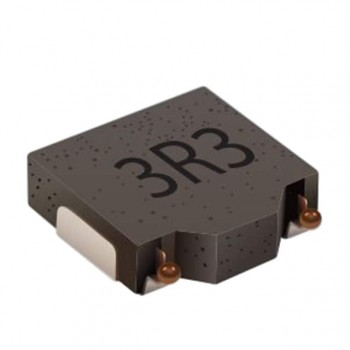

HOT SRP0515-3R3K
