B82472G4223M000

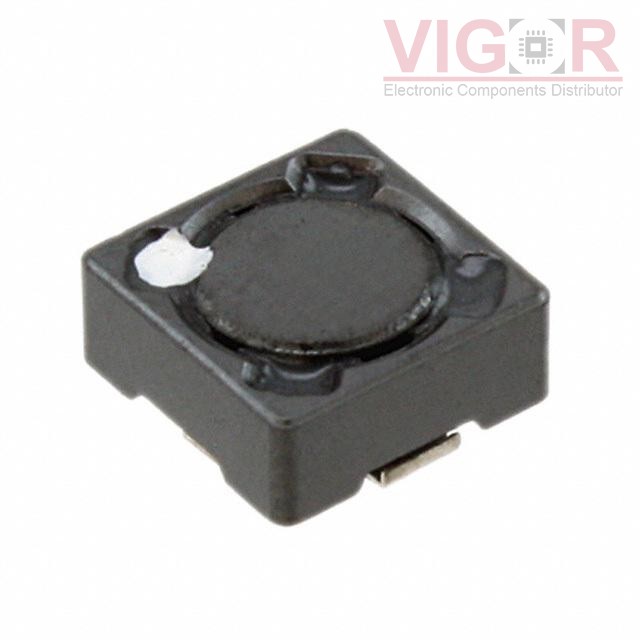

Image is for reference,
please contact us to get the real picture

Part No :: B82472G4223M000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 1.1A 200 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: B82472G4223M000 PDF

Availability: 1514 pieces

Unit Price: ~~$1.13000~~

Current price of B82472G4223M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82472G4223M000 Specifications

Type	Description
Series:	B82472G4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.1 A
Current - Saturation (Isat):	900mA
Shielding:	Shielded
DC Resistance (DCR):	200mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.138" (3.50mm)
