PM4345.223NLT

PM4345.223NLT

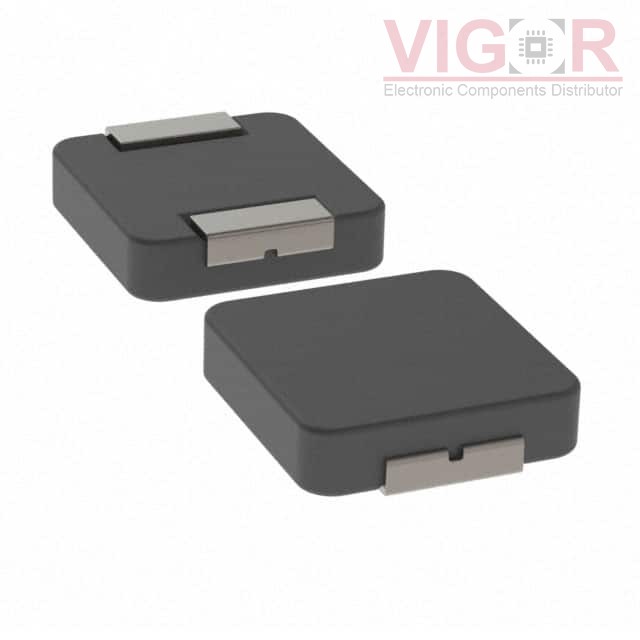

Image is for reference,
please contact us to get the real picture

Part No :

PM4345.223NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 22UH 1.5A 390 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PM4345.223NLT PDF
Availability
0 pieces
Unit Price
$0.42900

Current price of PM4345.223NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM4345.223NLT Specifications
Type Description
Series:PM4345.XXXNLT
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):1.5 A
Current - Saturation (Isat):1.8A
Shielding:Shielded
DC Resistance (DCR):390mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.213" W (6.00mm x 5.40mm)
Height - Seated (Max):0.079" (2.00mm)
