7447745220

7447745220

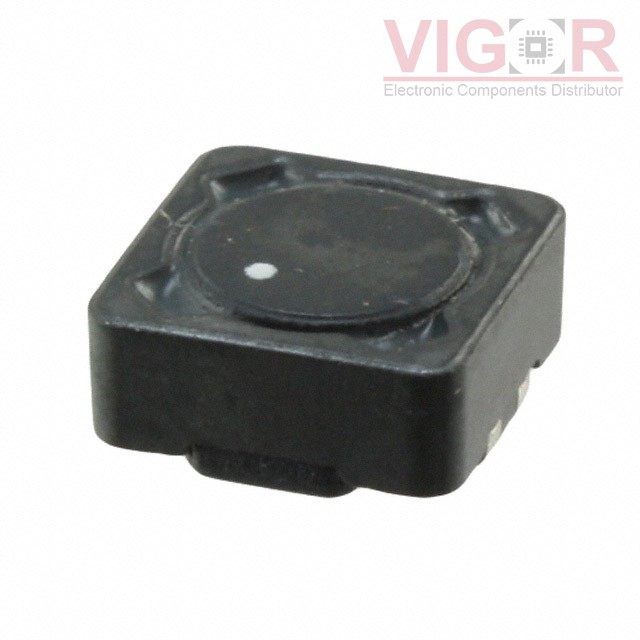

Image is for reference,
please contact us to get the real picture

Part No :

7447745220

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 22UH 1.05A 330 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
7447745220 PDF
Availability
1000 pieces
Unit Price
$1.76000

Current price of 7447745220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7447745220 Specifications
Type Description
Series:WE-PD2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):1.05 A
Current - Saturation (Isat):1.2A
Shielding:Unshielded
DC Resistance (DCR):330mOhm Max
Q @ Freq:-
Frequency - Self Resonant:24MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max):0.091" (2.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 13R686C

13R686C

FIXED IND 68MH 40MA 152 OHM TH

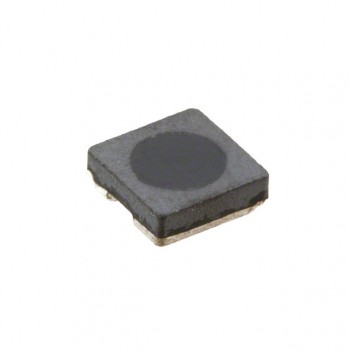

HOT SRR3011-3R3YL
