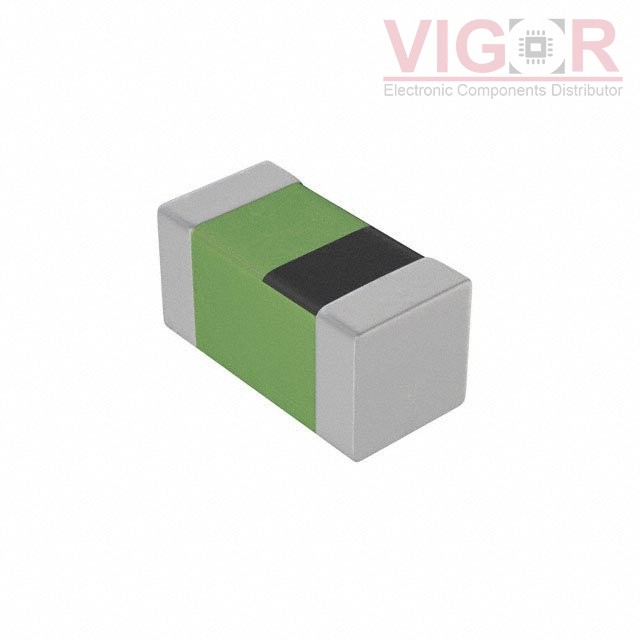

LQG15WH9N1J02D

LQG15WH9N1J02D

Image is for reference,
please contact us to get the real picture

Part No :

LQG15WH9N1J02D

Manufacturer
TOKO / Murata
Description
FIXED IND 9.1NH 550MA 170 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
LQG15WH9N1J02D PDF
Availability
6592 pieces
Unit Price
$0.15000

Current price of LQG15WH9N1J02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQG15WH9N1J02D Specifications
Type Description
Series:LQG15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Air
Inductance:9.1 nH
Tolerance:±5%
Current Rating (Amps):550 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):170mOhm Max
Q @ Freq:-
Frequency - Self Resonant:3.4GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.020" (0.51mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NRS6010T1R5MMGFV

NRS6010T1R5MMGFV

FIXED IND 1.5UH 1.9A 108 MOHM
HOT LCCI0201S1N6GTAR

LCCI0201S1N6GTAR

FIXED IND 1.6NH 500MA 180 MOHM

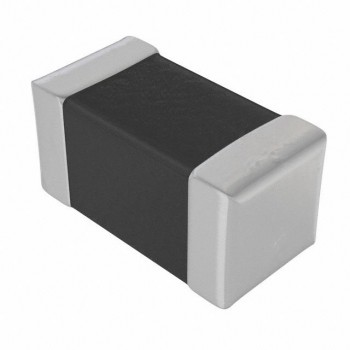

HOT AIML-0603-6R8K-T
