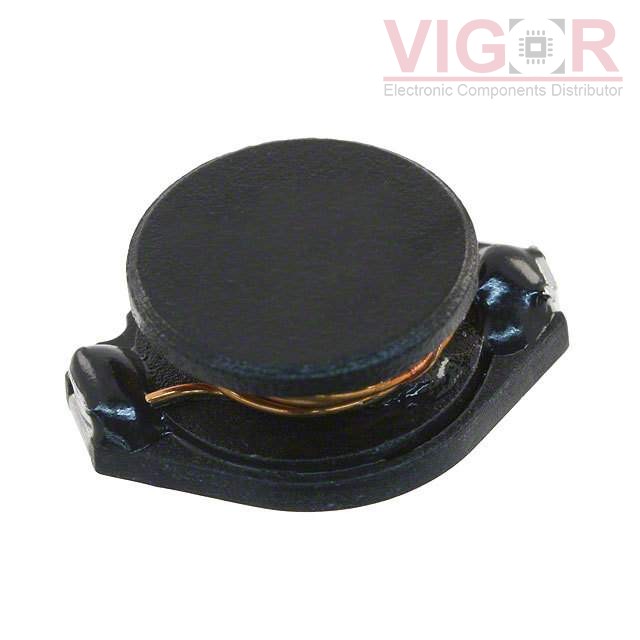

SDR1806-3R3ML

Image is for reference,
please contact us to get the real picture

Part No :

SDR1806-3R3ML

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 3.3UH 7.6A 9.8MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
SDR1806-3R3ML PDF
Availability
11 pieces
Unit Price
$1.16000

Current price of SDR1806-3R3ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:SDR1806
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):7.6 A
Current - Saturation (Isat):17A
Shielding:Unshielded
DC Resistance (DCR):9.8mOhm Max
Q @ Freq:22 @ 7.96MHz
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.272" (6.90mm)
