SDE6603-220M

SDE6603-220M

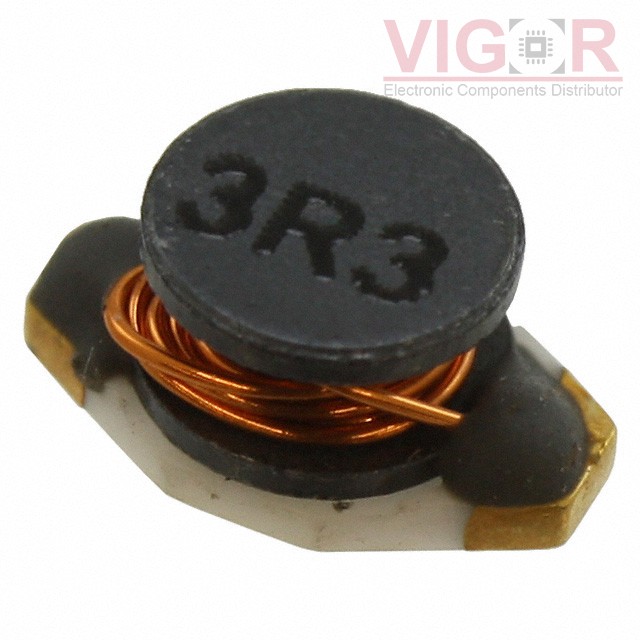

Image is for reference,
please contact us to get the real picture

Part No :

SDE6603-220M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 800MA 370MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SDE6603-220M PDF
Availability
0 pieces
Unit Price
$0.34100

Current price of SDE6603-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE6603-220M Specifications
Type Description
Series:SDE6603
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):800 mA
Current - Saturation (Isat):700mA
Shielding:Unshielded
DC Resistance (DCR):370mOhm Max
Q @ Freq:-
Frequency - Self Resonant:20MHz
Ratings:-
Operating Temperature:-25°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):0.115" (2.92mm)
