B82422A3561K100

B82422A3561K100

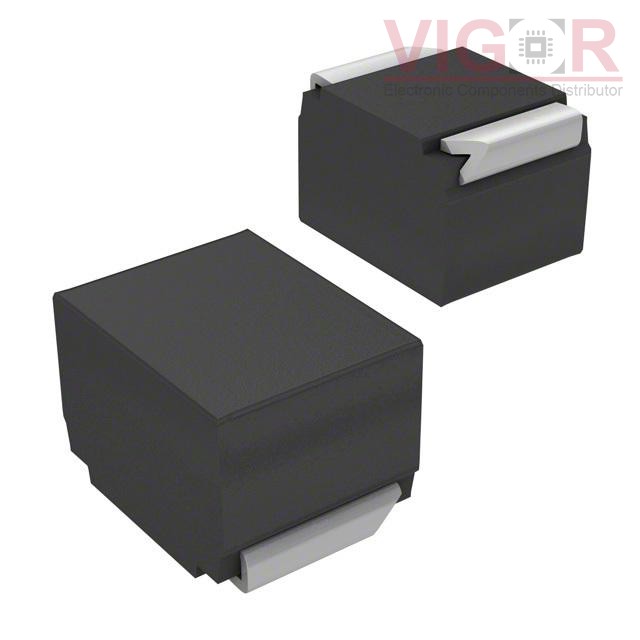

Image is for reference,
please contact us to get the real picture

Part No :

B82422A3561K100

Manufacturer
TDK EPCOS
Description
FIXED IND 560NH 150MA 2.2 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
B82422A3561K100 PDF
Availability
2956 pieces
Unit Price
$0.60000

Current price of B82422A3561K100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422A3561K100 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.2Ohm Max
Q @ Freq:22 @ 30MHz
Frequency - Self Resonant:400MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.083" (2.10mm)
