LQW15AN3N3D8ZD

LQW15AN3N3D8ZD

Image is for reference,
please contact us to get the real picture

Part No :

LQW15AN3N3D8ZD

Manufacturer
TOKO / Murata
Description
FIXED IND 3.3NH 2A 30 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
LQW15AN3N3D8ZD PDF
Availability
9660 pieces
Unit Price
$0.24000

Current price of LQW15AN3N3D8ZD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW15AN3N3D8ZD Specifications
Type Description
Series:LQW15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:3.3 nH
Tolerance:±0.5nH
Current Rating (Amps):2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):30mOhm Max
Q @ Freq:30 @ 250MHz
Frequency - Self Resonant:14GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:-
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

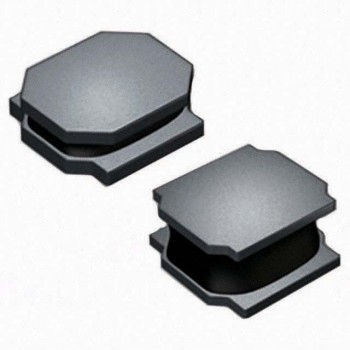

HOT NRS6014T1R2NMGG

NRS6014T1R2NMGG

FIXED IND 1.2UH 3.2A 50.4 MOHM

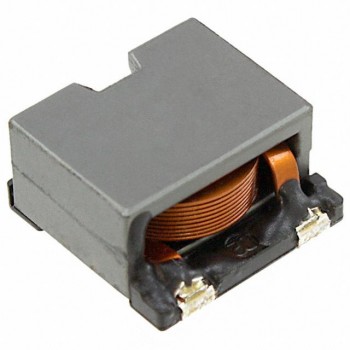

HOT CDEP147NP-120MC-125

CDEP147NP-120MC-125

FIXED IND 12UH 8.5A 13.31 MOHM

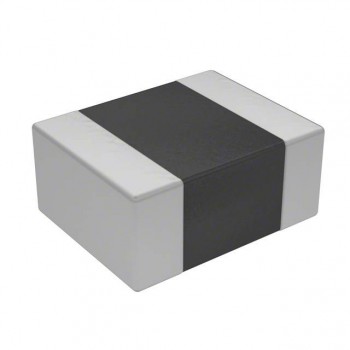

HOT DFE201610E-1R5M=P2
