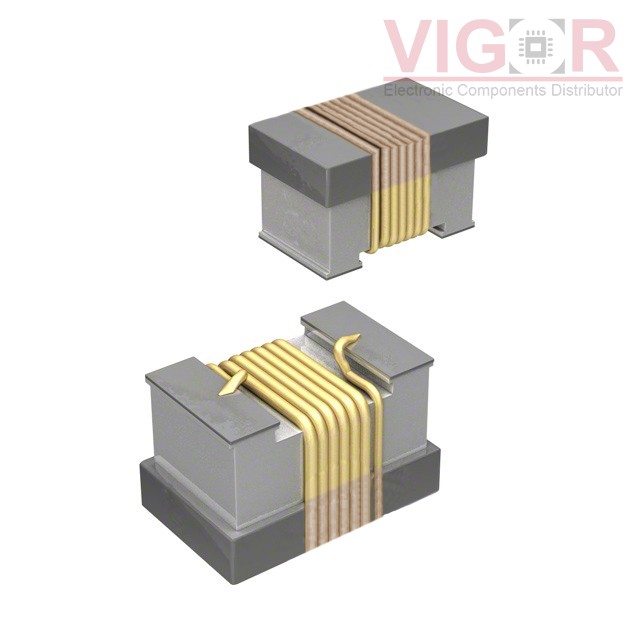

CW100505-10NJ

CW100505-10NJ

Image is for reference,
please contact us to get the real picture

Part No :

CW100505-10NJ

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 10NH 480MA 195MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
CW100505-10NJ PDF
Availability
7585 pieces
Unit Price
$0.34000

Current price of CW100505-10NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-10NJ Specifications
Type Description
Series:CW100505
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:10 nH
Tolerance:±5%
Current Rating (Amps):480 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):195mOhm
Q @ Freq:23 @ 250MHz
Frequency - Self Resonant:3.9GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW31HN17NJ03L

LQW31HN17NJ03L

FIXED IND 17NH 650MA 37 MOHM SMD

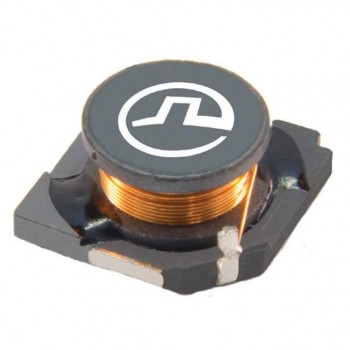

HOT PA4305.152NLT

PA4305.152NLT

FIXED IND 1.5UH 5.5A 45 MOHM SMD

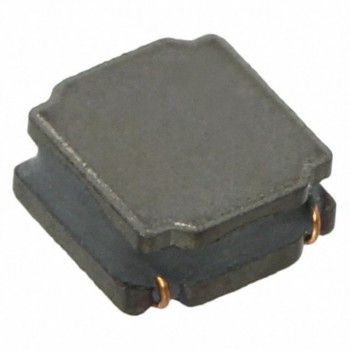

HOT 74405020015
