2300LL-220-V-RC

2300LL-220-V-RC

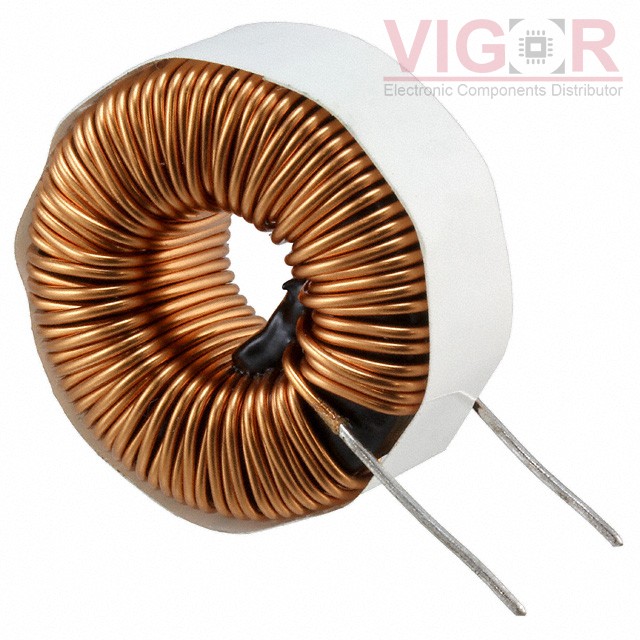

Image is for reference,
please contact us to get the real picture

Part No :

2300LL-220-V-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 17.7A 5 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
2300LL-220-V-RC PDF
Availability
217 pieces
Unit Price
$5.25000

Current price of 2300LL-220-V-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2300LL-220-V-RC Specifications
Type Description
Series:2300LL
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Sendust
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):17.7 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical (Open)
Supplier Device Package:-
Size / Dimension:1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Height - Seated (Max):-
