LQW2BAN22NG00L

LQW2BAN22NG00L

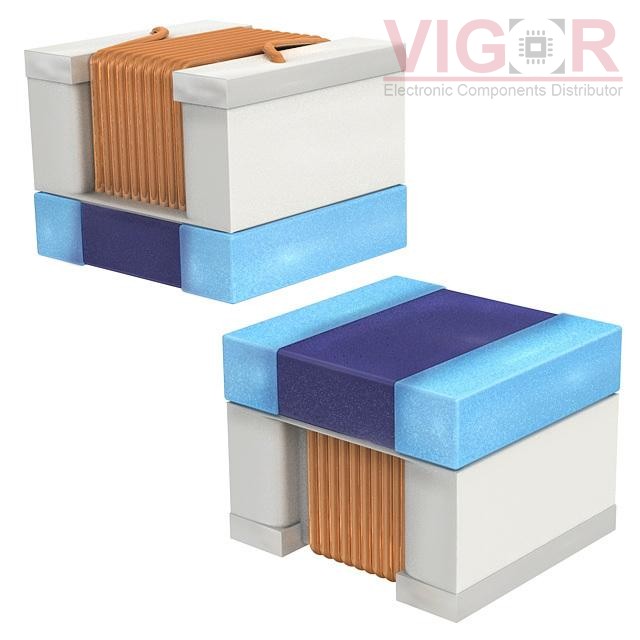

Image is for reference,
please contact us to get the real picture

Part No :

LQW2BAN22NG00L

Manufacturer
TOKO / Murata
Description
FIXED IND 22NH 1.9A 70 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
LQW2BAN22NG00L PDF
Availability
839 pieces
Unit Price
$0.48000

Current price of LQW2BAN22NG00L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW2BAN22NG00L Specifications
Type Description
Series:LQW2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:22 nH
Tolerance:±2%
Current Rating (Amps):1.9 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):70mOhm Max
Q @ Freq:85 @ 500MHz
Frequency - Self Resonant:1.85GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2015 Metric)
Supplier Device Package:-
Size / Dimension:0.082" L x 0.060" W (2.09mm x 1.53mm)
Height - Seated (Max):0.060" (1.52mm)
