LQM2MPN2R2NG0L

LQM2MPN2R2NG0L

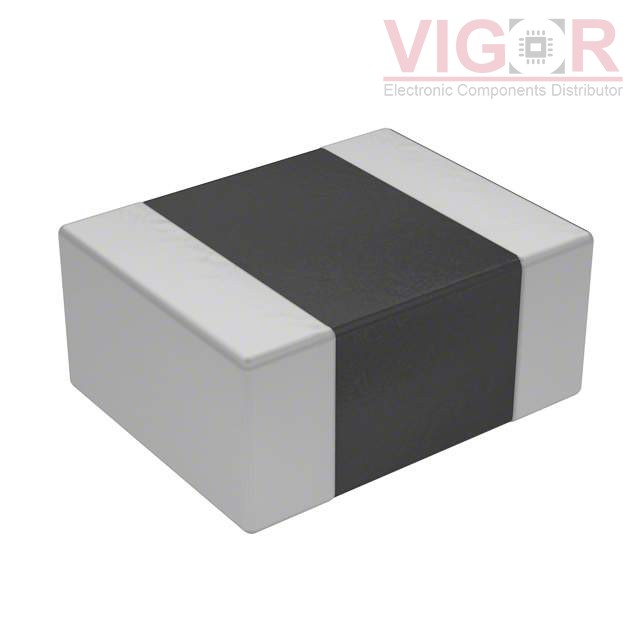

Image is for reference,
please contact us to get the real picture

Part No :

LQM2MPN2R2NG0L

Manufacturer
TOKO / Murata
Description
FIXED IND 2.2UH 1.2A 138 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
LQM2MPN2R2NG0L PDF
Availability
20098 pieces
Unit Price
$0.33000

Current price of LQM2MPN2R2NG0L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQM2MPN2R2NG0L Specifications
Type Description
Series:LQM2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±30%
Current Rating (Amps):1.2 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):138mOhm Max
Q @ Freq:-
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.039" (1.00mm)
