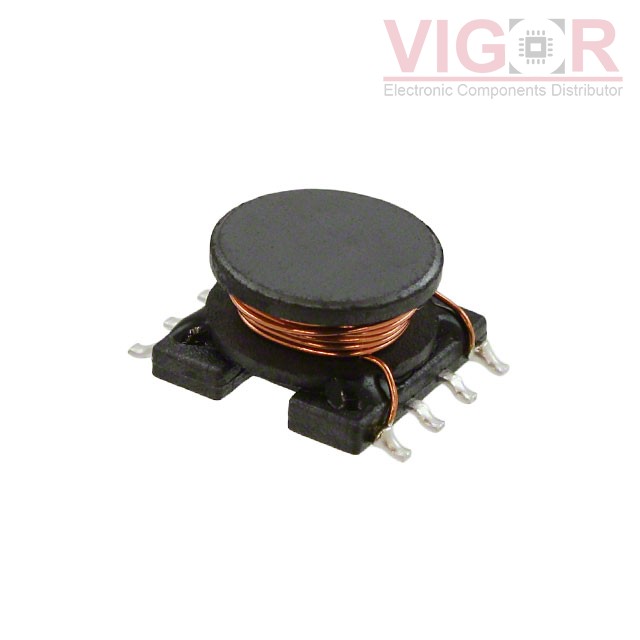

SDR0906-681KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR0906-681KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680UH 280MA 2.4OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: SDR0906-681KL PDF

Availability: 0 pieces

Unit Price: ~~$0.40480~~

Current price of SDR0906-681KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0906-681KL Specifications

Type	Description
Series:	SDR0906
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±10%
Current Rating (Amps):	280 mA
Current - Saturation (Isat):	460mA
Shielding:	Unshielded
DC Resistance (DCR):	2.4Ohm Max
Q @ Freq:	15 @ 796kHz
Frequency - Self Resonant:	4MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.413" W (12.50mm x 10.50mm)
Height - Seated (Max):	0.248" (6.30mm)
