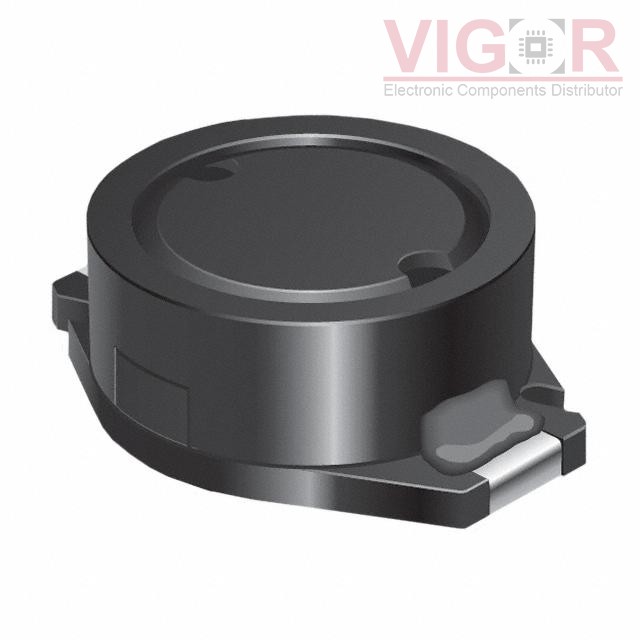

SRR0804-220Y

SRR0804-220Y

Image is for reference,
please contact us to get the real picture

Part No :

SRR0804-220Y

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 800MA 250MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SRR0804-220Y PDF
Availability
0 pieces
Unit Price
$0.41140

Current price of SRR0804-220Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR0804-220Y Specifications
Type Description
Series:SRR0804
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):800 mA
Current - Saturation (Isat):1.3A
Shielding:Shielded
DC Resistance (DCR):250mOhm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:22MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max):0.150" (3.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

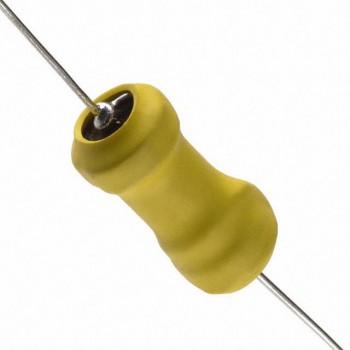

HOT 4590R-126K

4590R-126K

FIXED IND 12MH 265MA 9.34 OHM TH

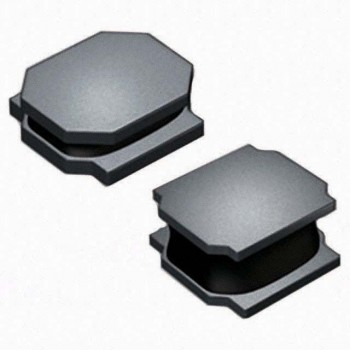

HOT NRS5012T4R7MMGF

NRS5012T4R7MMGF

FIXED IND 4.7UH 1.4A 216 MOHM

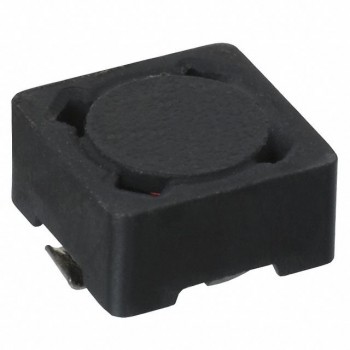

HOT P1167.224NLT
