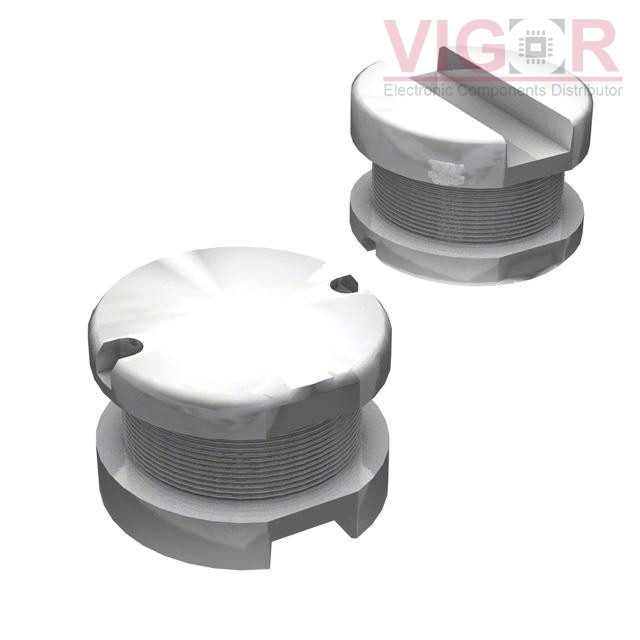

SDR0805-272KL

SDR0805-272KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR0805-272KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.7MH 120MA 11.8OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
SDR0805-272KL PDF
Availability
1742 pieces
Unit Price
$0.70000

Current price of SDR0805-272KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0805-272KL Specifications
Type Description
Series:SDR0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.7 mH
Tolerance:±10%
Current Rating (Amps):120 mA
Current - Saturation (Isat):180mA
Shielding:Unshielded
DC Resistance (DCR):11.8Ohm Max
Q @ Freq:31 @ 252kHz
Frequency - Self Resonant:1MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max):0.209" (5.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MHQ0603P16NHT000

MHQ0603P16NHT000

FIXED IND 16NH 180MA 1.7 OHM SMD

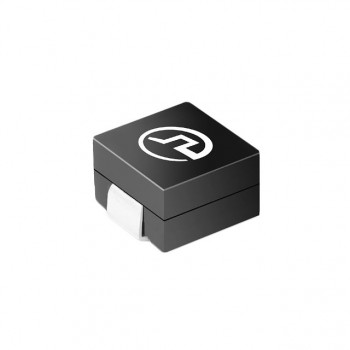

HOT PA3779.241HL

PA3779.241HL

FIXED IND 240NH 56A 0.29 MOHM

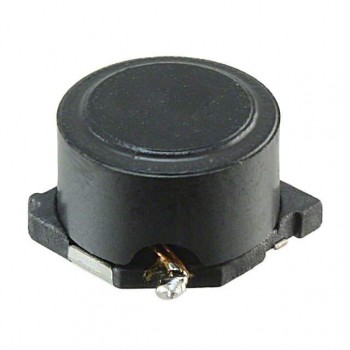

HOT NS10165T4R7NNA
