MLG1005S15NJTD25

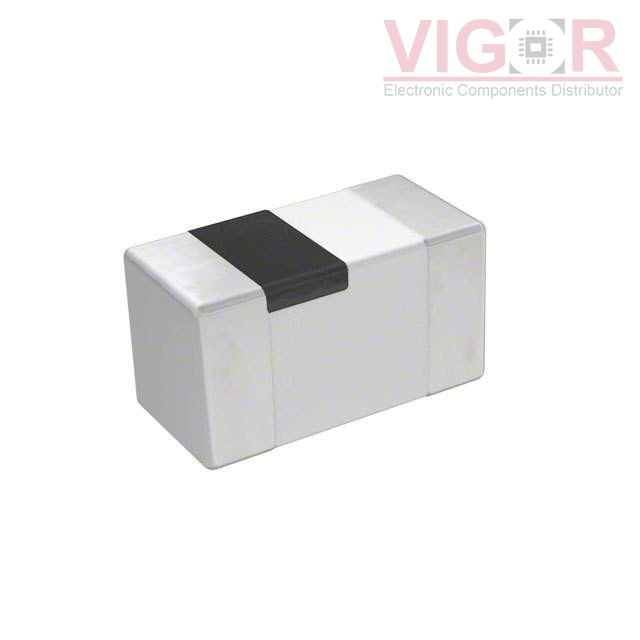

Image is for reference,
please contact us to get the real picture

Part No :: MLG1005S15NJTD25

Manufacturer: TDK Corporation

Description: FIXED IND 15NH 400MA 550 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: MLG1005S15NJTD25 PDF

Availability: 5258 pieces

Unit Price: ~~$0.14000~~

Current price of MLG1005S15NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MLG1005S15NJTD25 Specifications

Type	Description
Series:	MLG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ceramic, Non-Magnetic
Inductance:	15 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	2.2GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)
