MBMK2520H3R3M

MBMK2520H3R3M

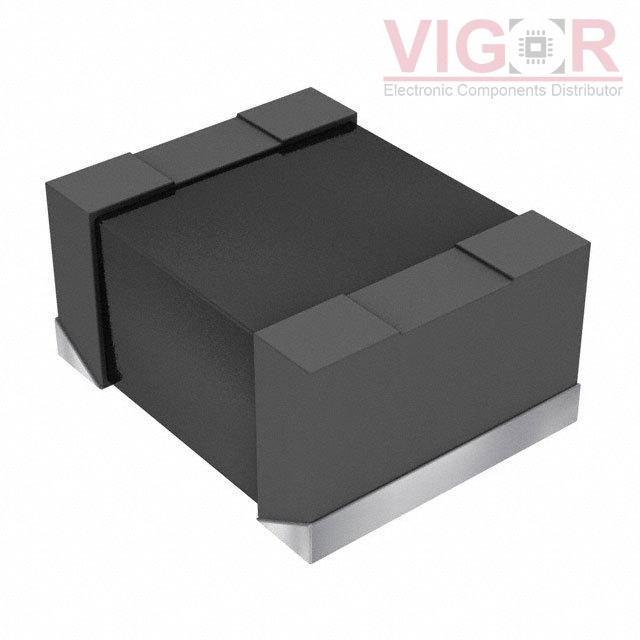

Image is for reference,
please contact us to get the real picture

Part No :

MBMK2520H3R3M

Manufacturer
TAIYO YUDEN
Description
FIXED IND 3.3UH 970MA 260 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
MBMK2520H3R3M PDF
Availability
0 pieces
Unit Price
$0.09044

Current price of MBMK2520H3R3M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBMK2520H3R3M Specifications
Type Description
Series:MCOIL™, MB, H Type
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):970 mA
Current - Saturation (Isat):1.4A
Shielding:Shielded
DC Resistance (DCR):260mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.047" (1.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MBMK2520HR68N

MBMK2520HR68N

FIXED IND 680NH 2.15A 58 MOHM
HOT IHLP2525CZER220M51

IHLP2525CZER220M51

FIXED IND 22UH 2.8A 174 MOHM SMD

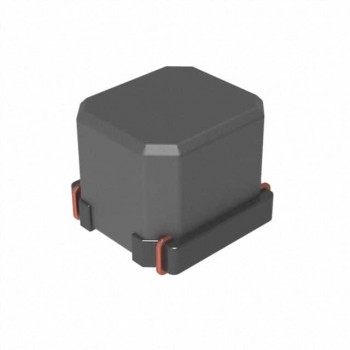

HOT LMLP13B3M150DTAS
